High-Pressure Elec Air Pump Deluxe
Description
OUR HIGH-PRESSURE AIR PUMPS are incredible dual action, automatic, 12 volt pump developed in Australia. Designed to blowup inflatable boats with no effort at all. Just set the pressure gauge and press the ON Button. The pump will then inflate your boat to its correct pressure and stop automatically.
Pump can be adjusted from 1 PSI up to a maximum of 12 PSI. By delivering around 200 liters/minute, an electric pump will inflate a typical 14' boat in about 8-10 minutes (compare to 15-20 minutes with a hand pump). High-pressure inflator pump automatically stops at the pressure level that you select and is also ideal for deflating. It comes with a set of generic multi valve adapters.
These pumps are not only excellent for quickly inflating boats and rafts, but also great for quickly filling inflatable high-pressure air deck floors and stand up paddleboards to up to 10-12psi air pressure.
HOW IT WORKS:
When the pump starts, it will be on a HIGH VOLUME (Turbine) pump until the pressure reaches 2-3 PSI. Then the pump will automatically switch over to the HIGH PRESSURE (Piston) pump and inflate the boat to its set pressure. Once reaching the set pressure the pump will automatically turn itself off.
When the pump starts, it will be on a HIGH VOLUME (Turbine) pump until the pressure reaches 2-3 PSI. Then the pump will automatically switch over to the HIGH PRESSURE (Piston) pump and inflate the boat to its set pressure. Once reaching the set pressure the pump will automatically turn itself off.
High-pressure inflator pump automatically stops at the pressure level that you select and is also ideal for deflating.
Using any other adaptors beside provided can burn pump pistons and will void its warranty.
DELUXE AIR PUMP FEATURES:
- Internal rechargeable battery charges from wall charger only!
- No ability to use cables to connect to external battery.
- High-Speed fan pump and High-Pressure piston pump.
- Digital Gauge to display current air pressure readings in KPA or PSI.
- Automatic Stop when chosen pressure is reached.
- Reliable combination of Turbine & Piston to reduce wear.
- All necessary adaptors are included to fit most air valves.
- FREE soft carry bag with storage compartments and carry strap.
- Internal rechargeable battery, allowing to take deluxe pump almost anywhere.
- Packing dimensions is 14"x8"x8". Shipping weight is 13lbs.
ACCESSORIES INCLUDED IN YOUR PACKAGE:
- Set of generic plastic adaptors designed to fit most of air valves
- Battery wall charger
Warranty: 3 months warranty on battery and 6 months on pump from date of purchase
BATTERY TIP:
Our high-pressure pump comes with 12V 7AH batteries.
Please read important WARNINGS below!
IMPORTANT WARNINGS:
-
-
DO NOT USE HAND PUMP ADAPTORS WITH HIGH-PRESSURE ELECTRIC PUMP
-
MAKE SURE VALVE PUSHPIN IS PRESSED DOWN WITH E-PUMP ADAPTOR
-
DO NOT USE E-PUMP WITH ANY OTHER ADAPTORS EXCEPT PROVIDED
-
DO NOT RUN E-PUMP ON HIGH PRESSURE FOR LONGER THEN 15 MINUTES
-
DO NOT DROP E-PUMP ON HARD SURFACE OR SUBMERGE INTO THE WATER
-
DO NOT LET SAND, DUST OR DEBRIS ENTER INSIDE AIR INTAKE
-
DO NOT ATTACH ADDITIONAL ADAPTORS BETWEEN HOSE AND E-PUMP
-
MAKE SURE AIR IS NOT ESCAPING AROUND VALVE ADAPTOR OR HOSE
-
DO NOT OPERATE E-PUMP IF IT IS HOT. LET IT COOL BEFORE USE
INSTRUCTIONS:
AVERAGE AIR PRESSURE FOR INFLATABLES:-
BOAT TUBES: 20KPA (25KPA MAX)
-
BOAT KEEL: 30KPA (40KPA MAX)
-
BOAT FLOOR: 60KPA (70KPA MAX)
-
iSUP BOARD: 70KPA (80KPA)
- Out of the several included valve adaptors, you will need to find one that fits tightly inside your air valve. The correct adaptor should have a small perpendicular plastic piece that goes inside across the tube or will have 2 small tabs. This perpendicular piece or tabs are designed to press on the pushpin inside the valve to open valve and allow air to be pumped inside boat chamber. Try different adaptors to see which one fit better and can firmly press on pushpin of your air valve.
- Before attaching the hose with the correct plastic valve adaptor to your Saturn boat Naru valve, please make sure that the pushpin inside the valve is in the upper, locked position. Air will not escape from a chamber when the pushpin is in the upper position.
- Insert the valve adaptor connected to the electric pump hose into the Naru valve, so that the perpendicular piece or tabs presses the valve pushpin down, and unlocks the valve by letting air in. Once the chamber is full to capacity, you will quickly pull one end of the electric pump hose, and the Naru valve will automatically lock itself.
- Never inflate air valve that is locked. This will burn pump very quickly and will void warranty.
- Set the proper air pressure in KPAs on your electric pump dial prior to operating the pump. Make sure that you do not over inflate the boat chambers. Please note, that high-pressure air floors withstand much more air pressure then boat tubes.
- When the boat is deflated, the high-volume air pump will start quickly filling the chamber up to 80%, and then the high-pressure pump will kick in to fill the boat to the setting of the air pressure dial. You will hear more louder noise once high pressure piston pump will start working. That is normal. The pump should stop automatically once the correct air pressure is reached.
-
Troubleshooting & Frequently Asked Questions (FAQ):
I hear rumbling noises and small parts rocking inside the pump?
- Do not drop pump, there are plastic parts inside that can break. Do not overheat piston pump by trying to fill closed valves, running longer then 15 minutes or using small air output adaptors. Piston pump parts can break if overheated. If pump still within warranty period, send it back for replacement.
Yellow hose connected to air output of pump become hot and let air escape.
- If pump running too long, piston mechanism get overheated and heat up hose too. Apply Teflon tape between hose and output or use metal clamp to secure it to the black output tube.
Electric pump was stored in my car and now does not turn on. Why?
- Electric pump has temperature sensor built in and will not turn on if was stored in a hot car. Please allow deluxe pump to cool off in a shade or by holding it against car air conditioning vent for couple minutes.
Pump switching to HP mode immediately after powering on. Why?
- Make sure that valve is locked, with pushpin in an upper position. Also, make sure you are using correct valve adaptor. Provided specialized valve adaptor should press on pushpin inside the valve and open it to let air in. As soon as you remove that adaptor, valve will automatically lock itself, preventing air from escaping.

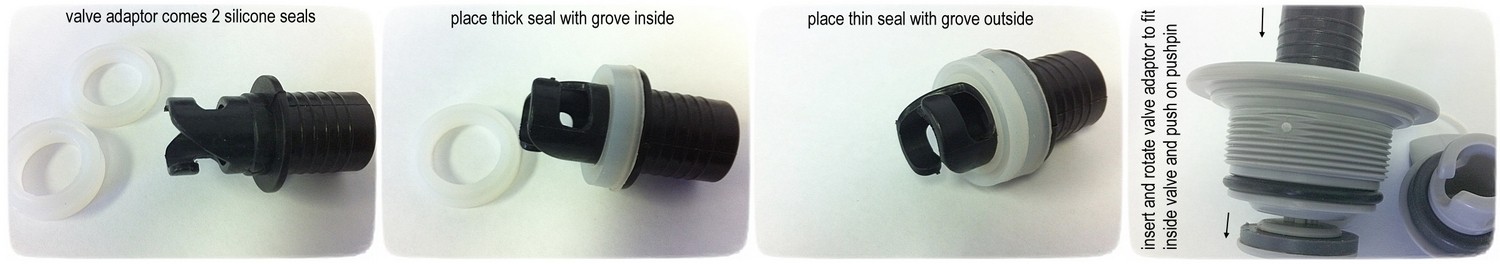

How to use specialized valve adaptor with Naru valves?
- Specialized Naru valve adaptor comes with 2 silicone rubber seals. For better fit into Naru valve, place thick seal with grove inside and thin seal with grove outside as shown on below pictures:
Technical specs
Tech Specs (?)
| 14"x8"x8" | |
| 13 lbs | |
| 500L / min | |
| 12 PSI / 80 KPa | |
| 1.5 PSI / 10 KPa | |
| Digital Up/Down | |
| 1 KPa | |
| DC 12 Volt | |
| 15 minutes | |
| 20.5 mm | |
| 67 DB / 7M |
